Printer Model

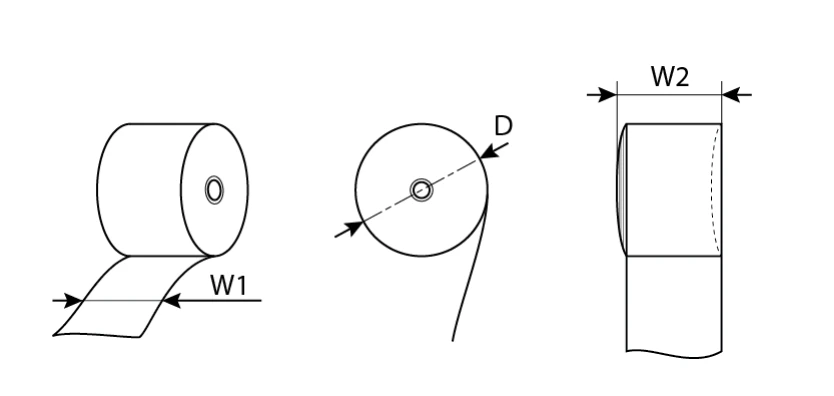

FlexWash uses the Star Micronics TSP143IVUE thermal receipt printer. The printer connects to the site network over LAN using a CAT5E cable, which enables any authorized Pay Tablet on the network to print without pairing or USB cabling.Receipt paper specifications
Use paper rolls that comply with the following specifications.
| Attribute | Specification |
|---|---|
| Paper width (W1) | 79.5 ± 0.5 mm (with attached paper roll guide: 57.5 ± 0.5 mm) |
| Maximum roll diameter (D) | φ83 mm |
| Curling dimension (W2) | 80.0 +0.5, -1 mm / 58.0 +0.5, -1 mm |
| Paper thickness | 49 to 85 µm |
| Axial | Inner diameter: φ12 ± 1, Outer diameter: φ16 ± 1 mm |
| Color surface | Roll exterior |
| Termination process | Do not glue the paper roll and axial wrapper. |
