Installation
Register Config
All GatesThese registers need to be set for every gate.
Gate 1
Gate 2
Gate 3 (If you have 3 lanes)
Merge Loop (Optional)
If you have a gate with a merge loop.
Verify IP Settings
Confirm the registers above took effect before leaving the site. This test uses a laptop connected directly to the gate, so it isolates the gate’s network configuration from the rest of the site’s network.1
Connect a laptop directly to the gate
Run a patch cable from the laptop to the gate’s ethernet port.
2
Set the laptop to the gate's subnet

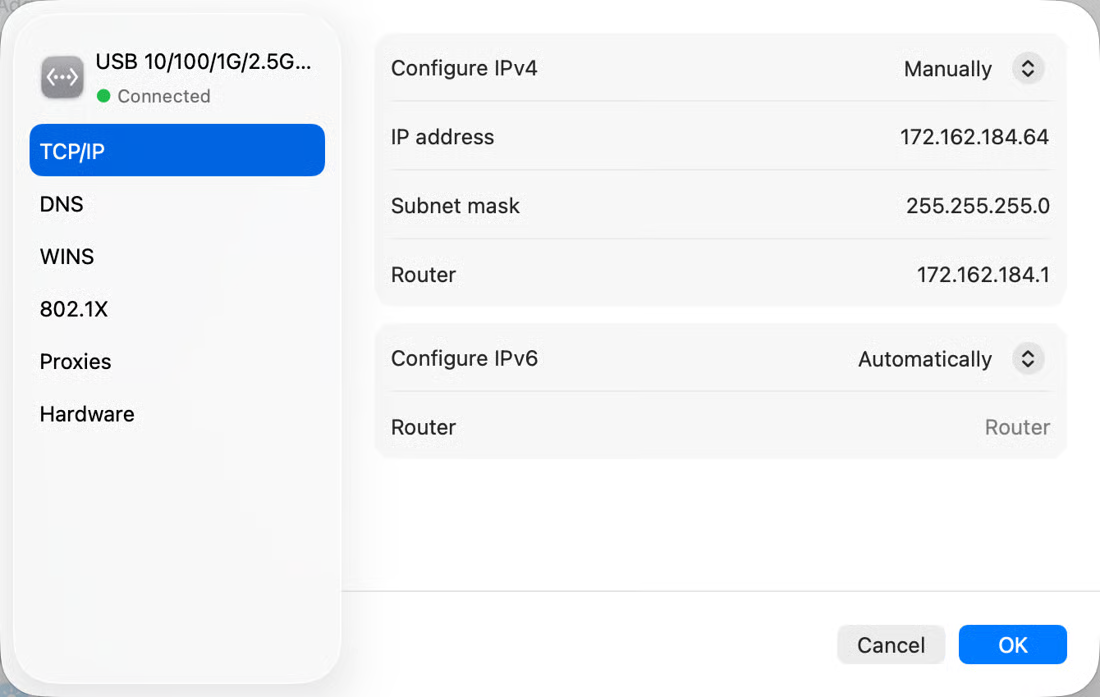

Set the laptop’s ethernet interface to configure IPv4 manually. Use an address on the same subnet as the gate but different from every gate on site. We use
172.162.184.64 for this purpose. Set the subnet mask to 255.255.255.0 and the router to 172.162.184.1 to match registers P230 to P233 and P220 to P223.
3
Ping the gate

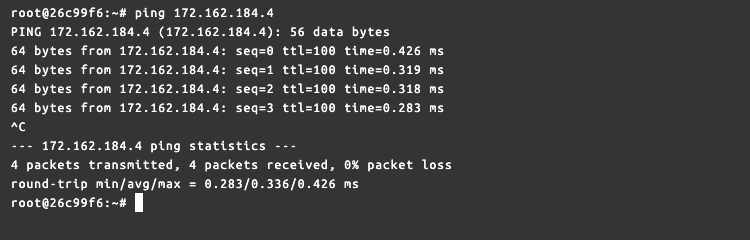

Ping the gate at You should see replies from the gate and 0% packet loss:
172.162.184.x, where x is 4, 5, or 6 depending on the value you saved in register P213. Let the test run for a few seconds, then stop it.
Manufacturer Settings

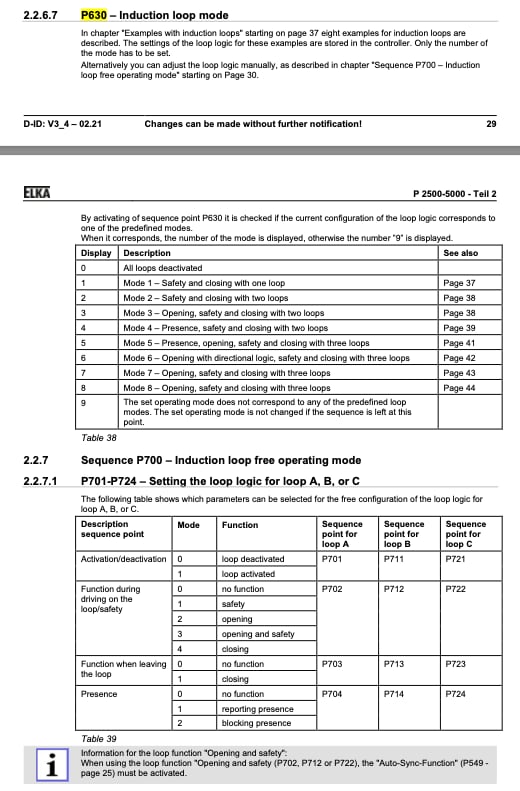

You can see more information about from the manufacturer’s manual.
Troubleshooting Errors

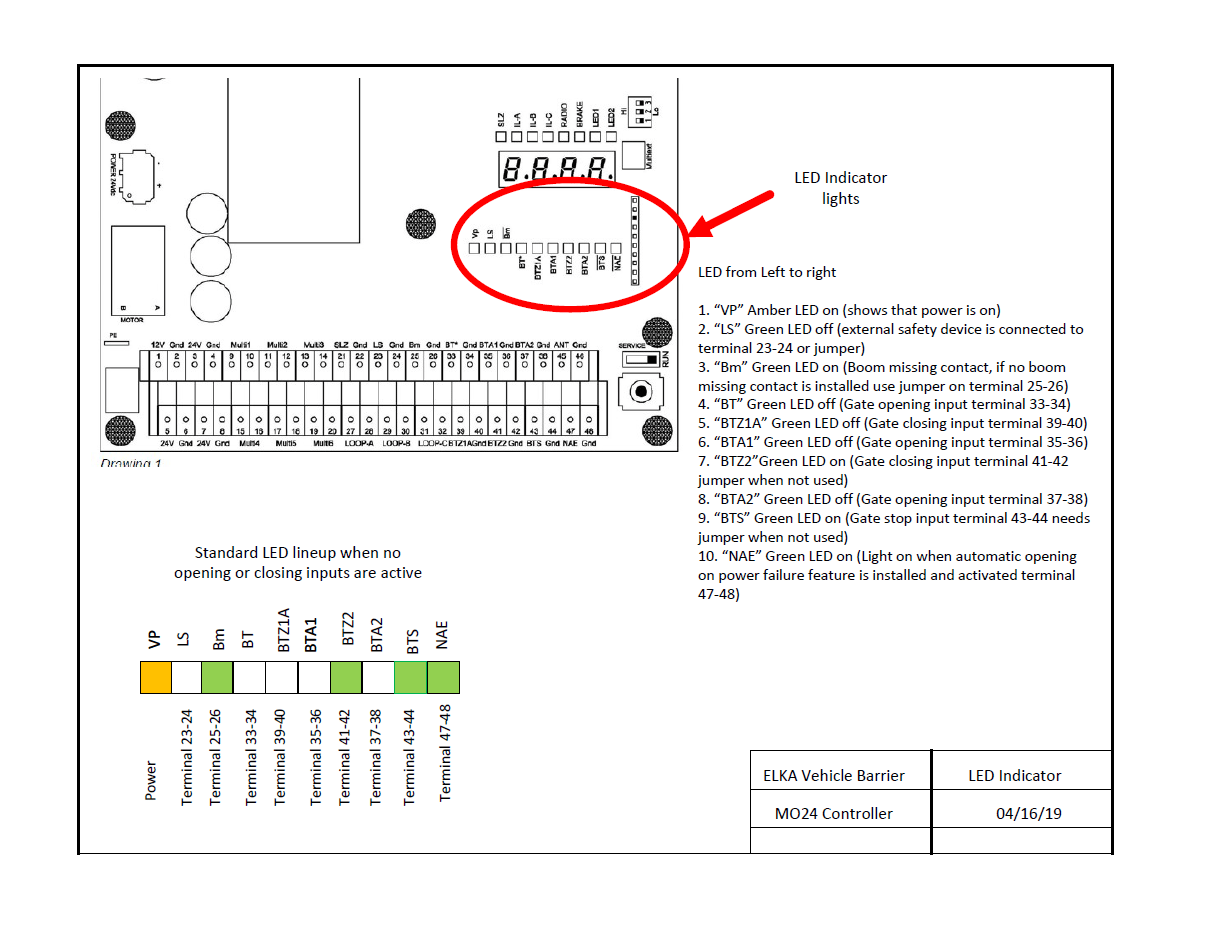

If the gate is misbehaving check these indicator lights, they will fire if there is a mechanical fault.
Power Cycle the gate
- Unlock the gate and remove the side panel.
- Flip the breaker to turn the gate off.
- Flip the breaker again to turn the gate back on.
Program the Gate
- Press and hold the joystick until the screen shows “P100”.
- Move the joystick up until the screen shows “P200”.
- Press the joystick.
- Move the joystick up until the screen shows “P210”.
- Press the joystick again.
- Move the joystick up or down, depending on the number on the screen, until it shows “172”.
- Press the joystick again to save the change.
- The screen will now show “211”. Press the joystick to modify that field.
- Move the joystick up or down until it shows “162”.
- Again press the joystick to save the change.
- Repeat the same steps for “212” until “184” shows on the screen and save the change.
- Repeat the same steps for “213”, but the number you will save here will vary depending on the gate you are programming. Gate one will have “4”, gate two “5”, gate three “6”, and so on. Save the change once you set the correct number.
Gate’s arm stuck in open position after power outage

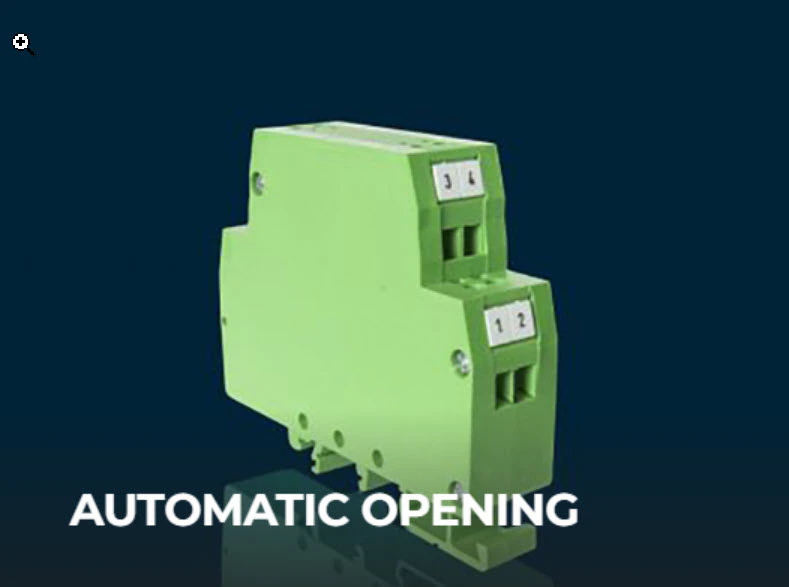

These gates come with a “Automatic Opening” module that might get activated after a power outage or power surge. This module will open the gate and it will remain in the open position. You will know if the module has been activated because the LED screen will display “P.OFF”.

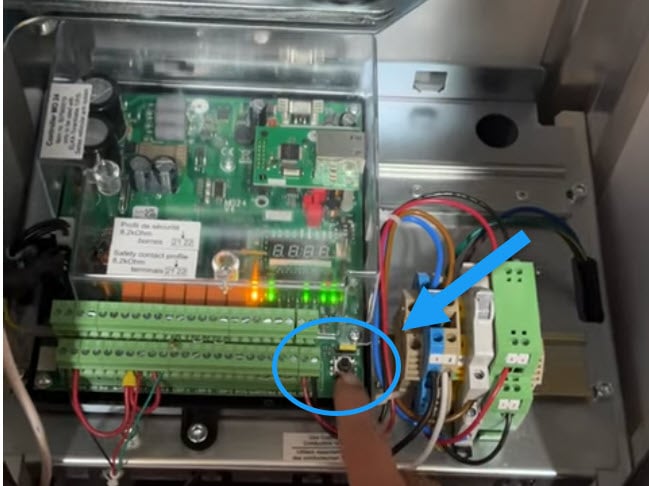

- Press and hold the little joystick circled in the image above for a couple of seconds until the LED screen shows “P100”.
- Press the joystick again.
- Move the joystick up until the screen shows “P103”. Then press the joystick.
- Move the joystick down or up until the number “0” appears. Then press the joystick one last time to save the change.
