Cameras should be installed 27” to 30” ft from the gate and 9” ft above ground.
Vehicle Detection
The FlexWash supplied LPR or License Plate Recognition Camera is the first piece of every transaction with FlexWash. This camera is similar to many on the market in the way it reads license plates. Where it varies is in Vehicle Detection. FlexWash uses proprietary software to both read license plates & detect vehicles simultaneously. This allows for us to have industry leading read rates.Example of a bad camera placement:
In the example above, the bad camera placement causes the Vehicle Detection to overlap when the second car comes in from the turn.
Example of good camera placement:
In the example above, the lane is straight and the camera placement does not allow cars to overlap in the frame guaranteeing that the Vehicle Detection runs smoothly.
Set up

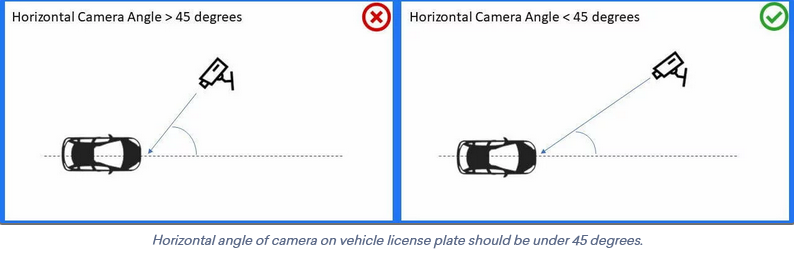

- The Horizontal Camera Angle (Side to side) should be less than 45 degrees of angle.

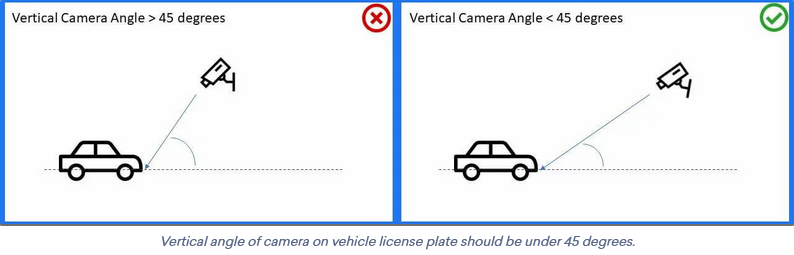

- The Vertical camera angle (Top to bottom) should be less than 45 degrees of angle.
- Minimum distance of 27’6” from the gate.
- Ideally, we want the lane to be be straight (no Left or right turns) to ensure that the License Plates are not misread due to visibility errors. See examples below:

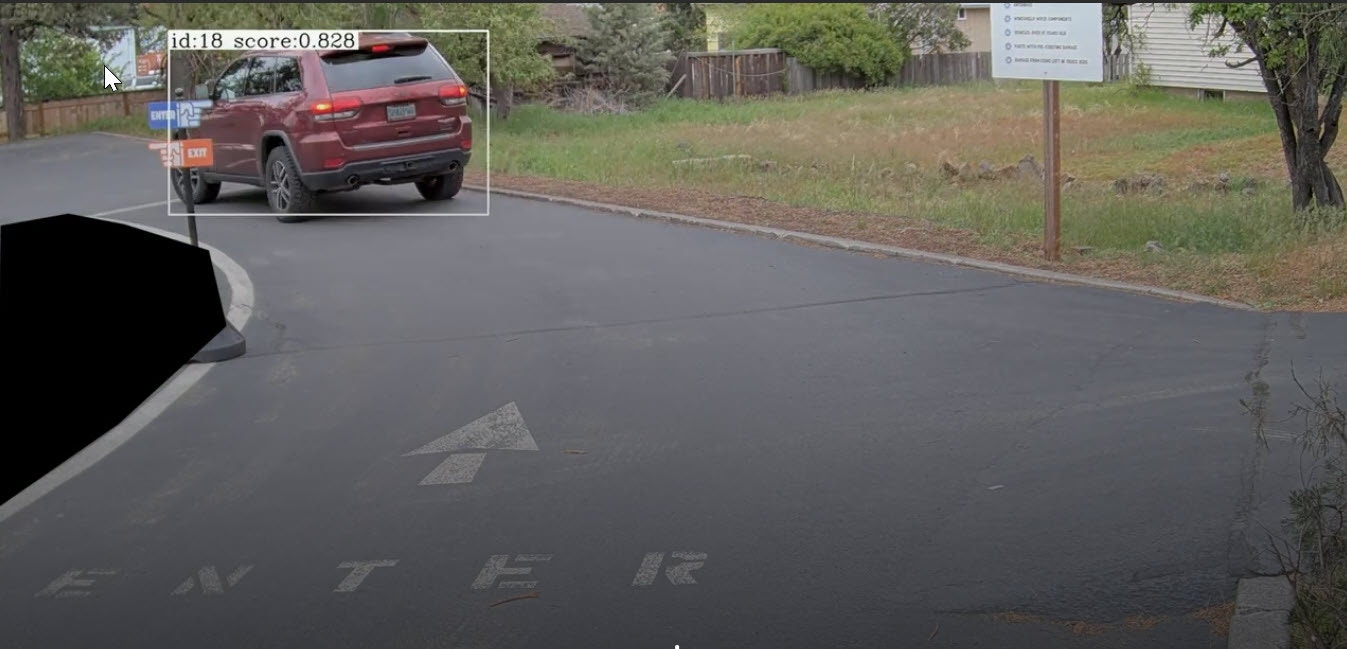

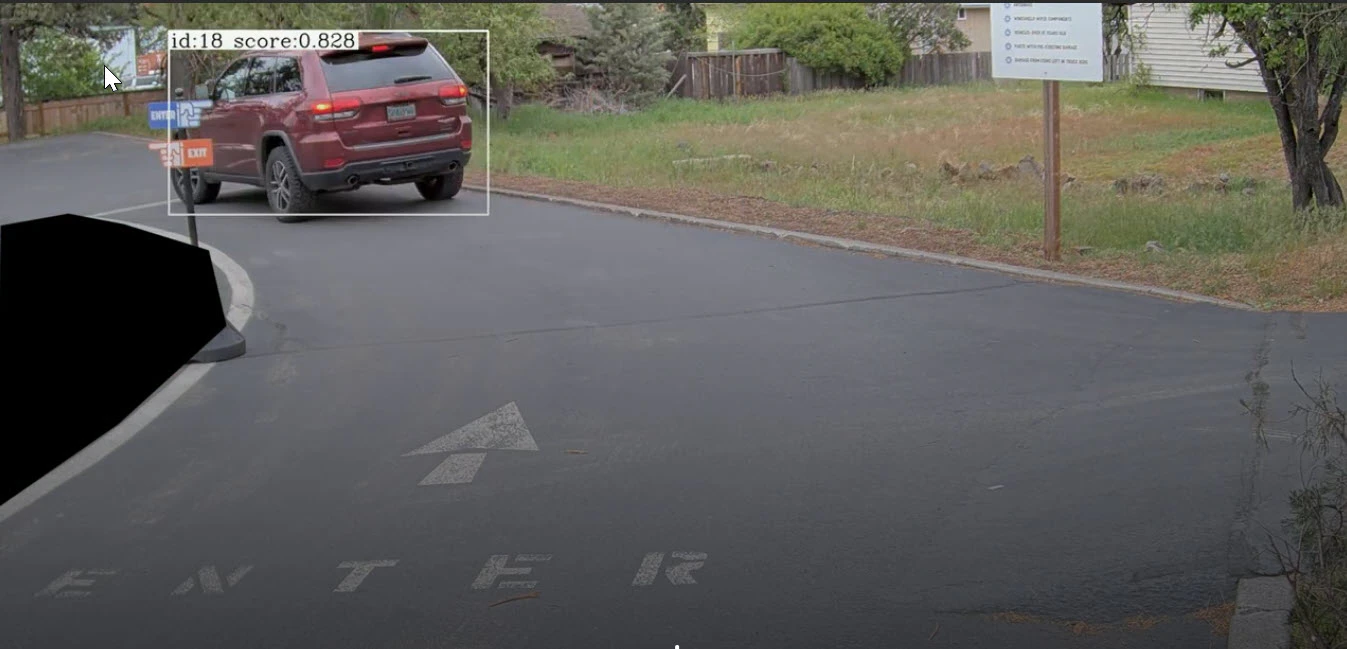

Example of a bad lane:

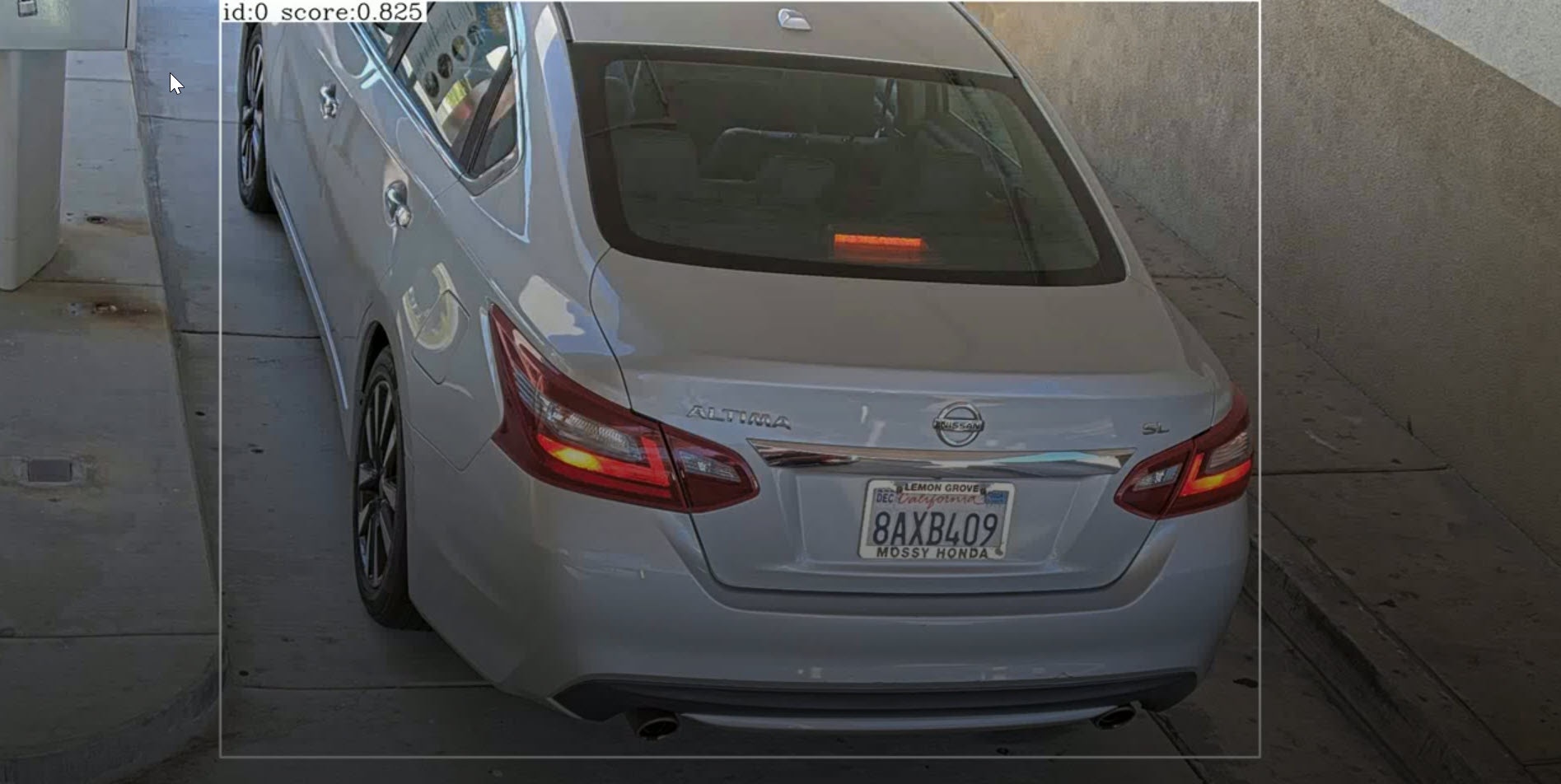

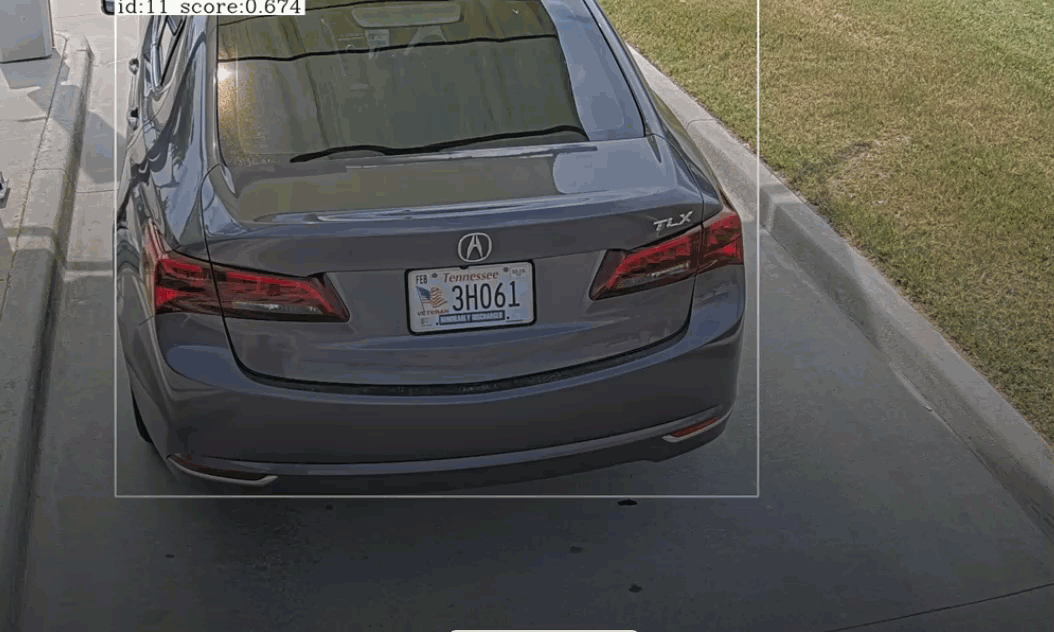

Example of a good lane:
Angles are more important than distance, but the whole car needs to be visible to the LPR camera.
To be extra sure please park a car in the lane and take a picture from where you want to put the camera and we will tell you if it is a good vantage point.
To be extra sure please park a car in the lane and take a picture from where you want to put the camera and we will tell you if it is a good vantage point.
Camera Mounting
Flat Surface

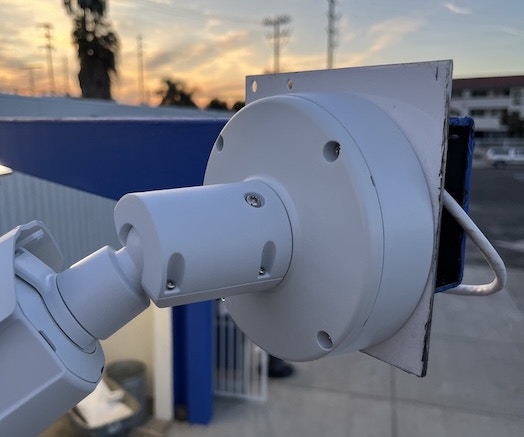

We recommend you mount the camera directly on a flat surface resistant to corrosion as shown in the image below. This gives the best protection against water damage.

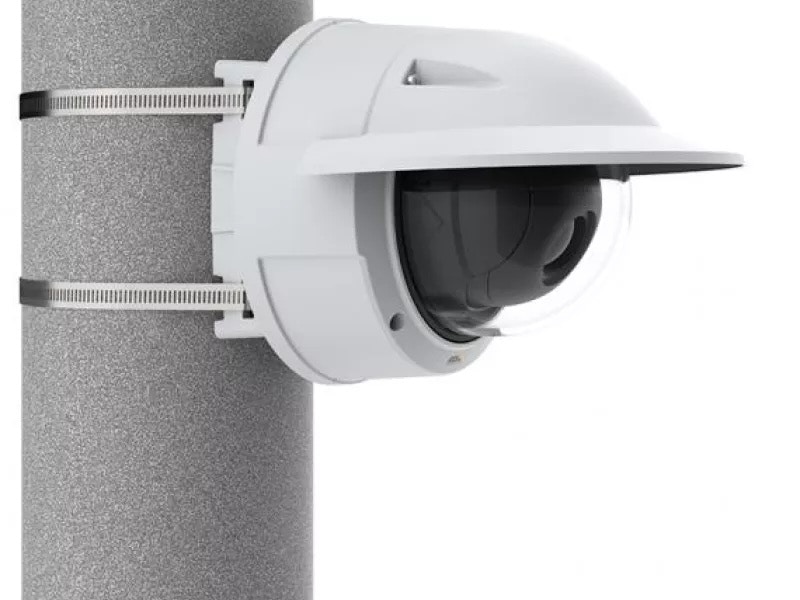

Pole Mount
If you cannot mount on a flat surface we recommend the AXIS T91B47 Pole Mount. This model is compatible with our cameras.This pole mount requires a more careful install since the back of the camera has an air gap so you must use the weather proof seal correctly for the ethernet cable. Instructions come with the camera.

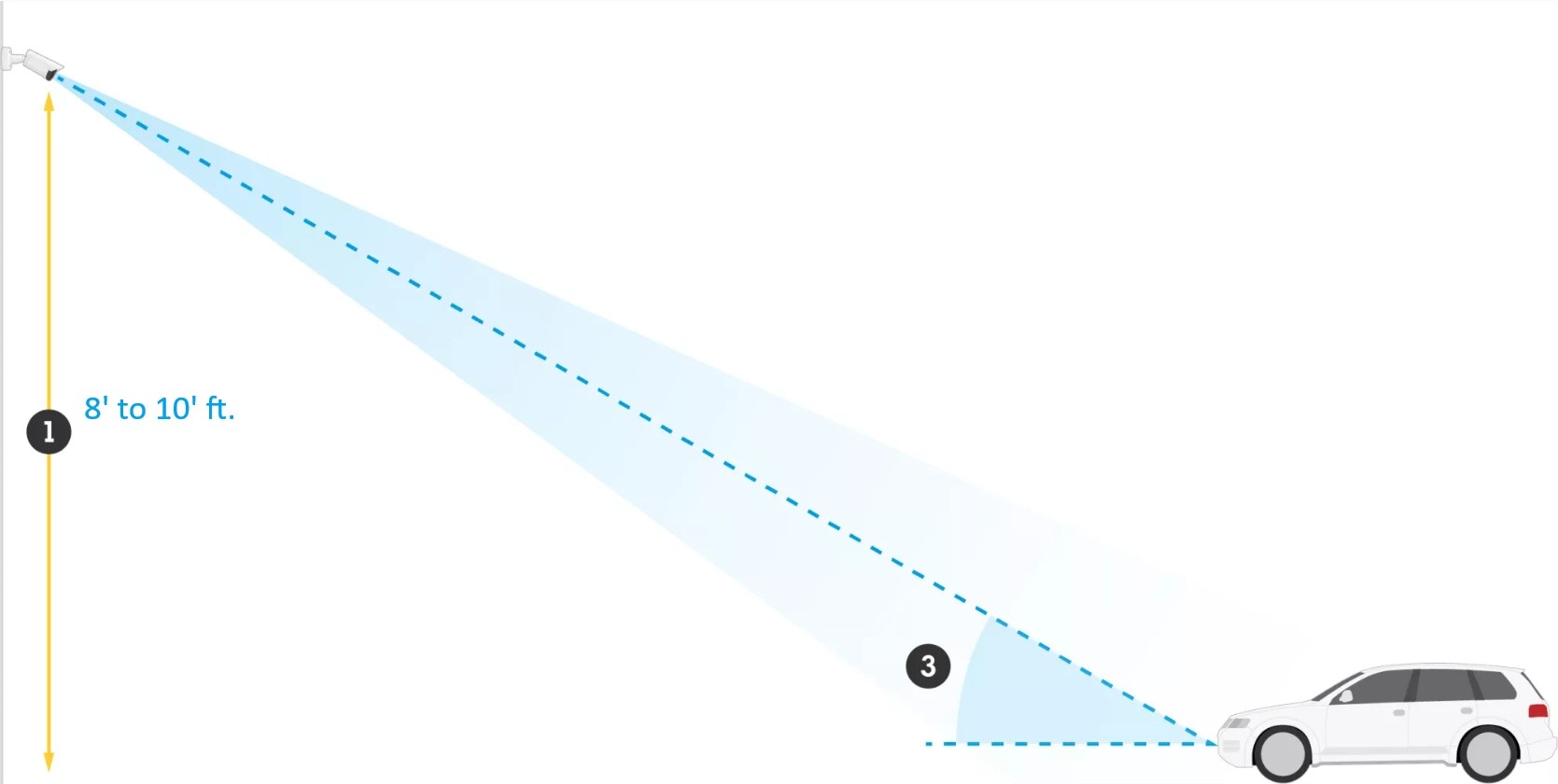

Camera Height
